Featuring a magnesium, single die-cast foldable frame, their bike combines durability with a sleek design.
Weighing only 47 lbs, it is highly portable and effortless to stow away, thanks to the intelligent quick-release mechanism, which includes foldable pedals and handlebar.
Cool German Design!

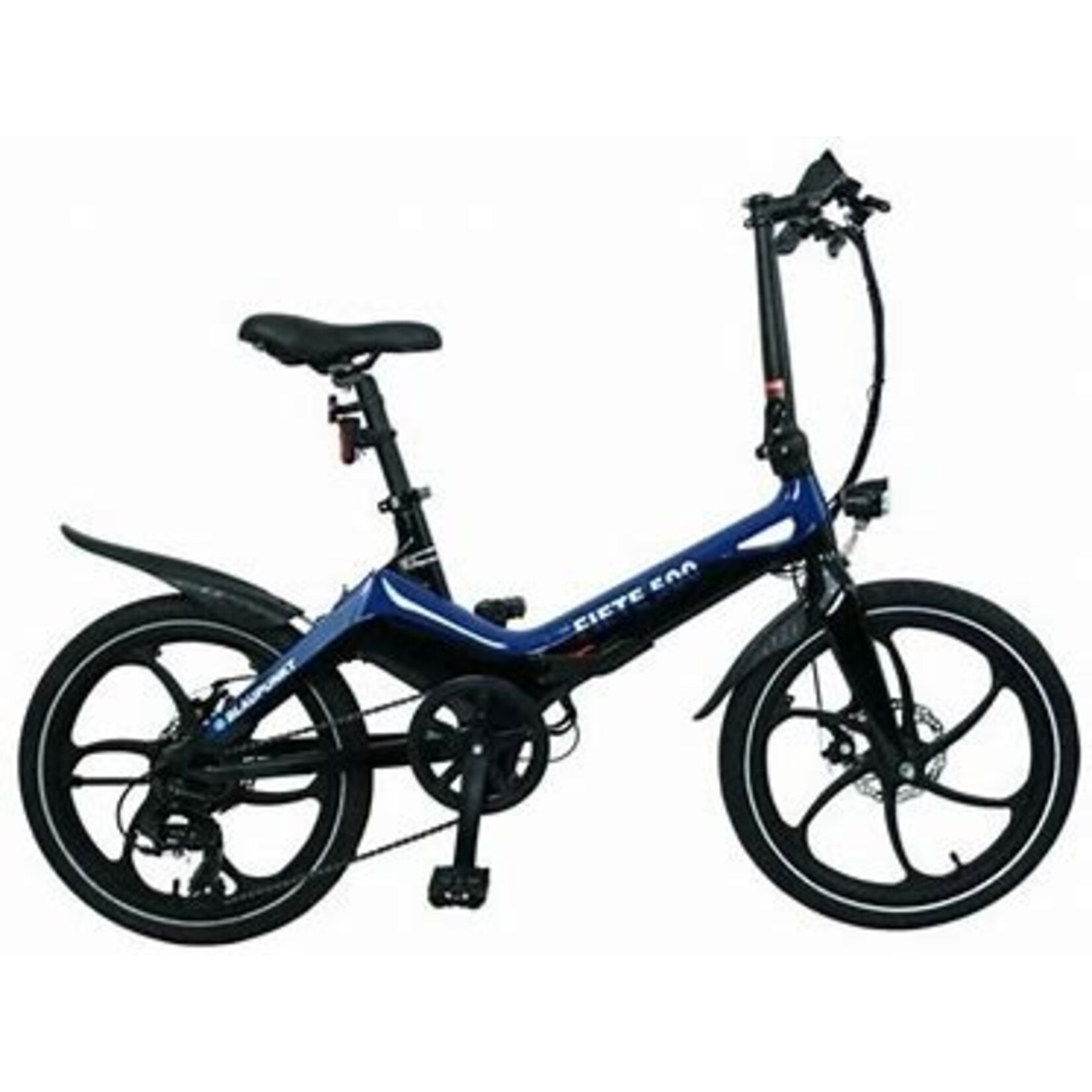

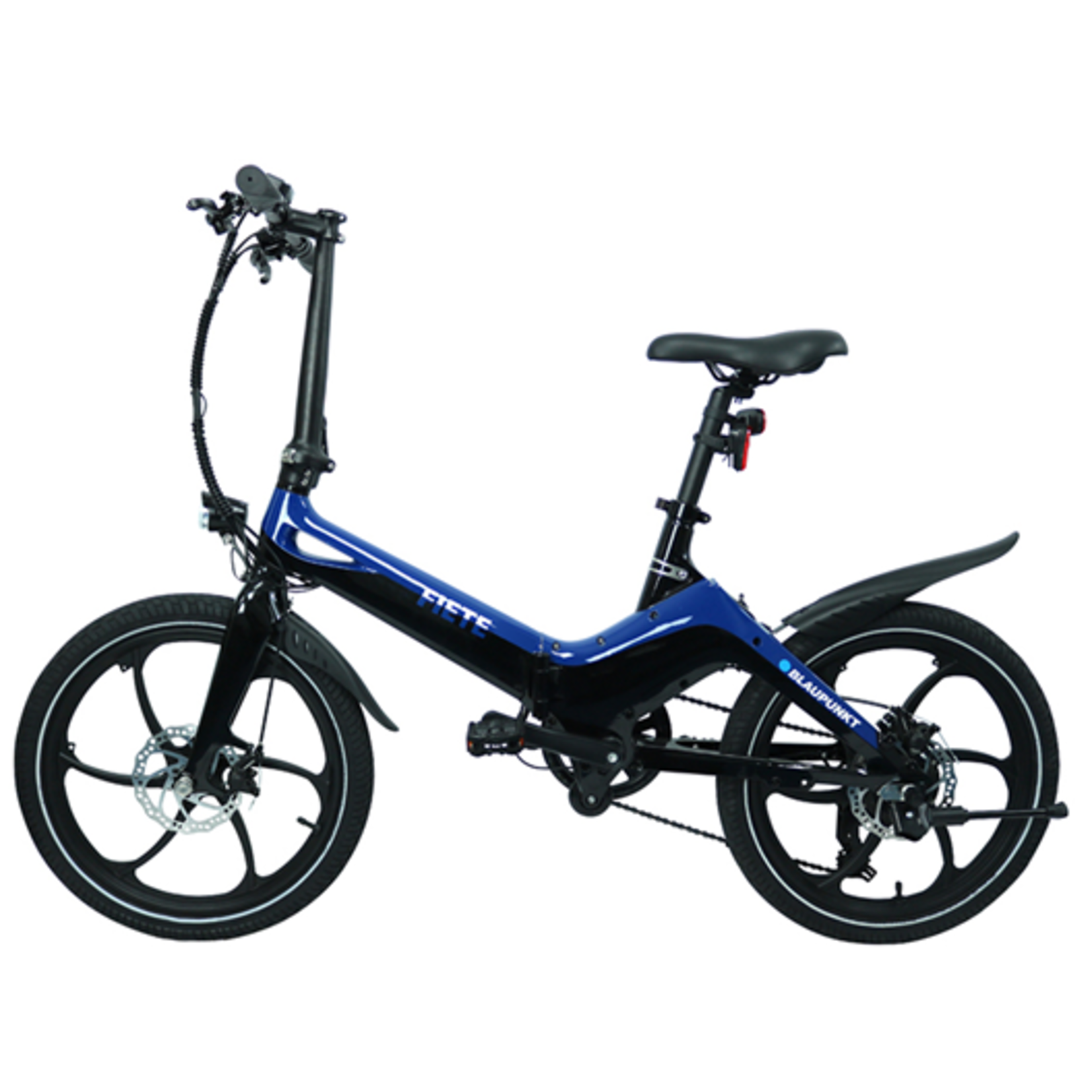

The Blaupunkt 20-inch e-folding bike offers exceptional peddle and throttle assist capabilities. Its sleek design features a durable, single die-cast foldable magnesium frame with no unsightly soldering joints. Weighing only 47 lbs. (21 kg), it’s ultra-portable, and it provides a range of up to 44 miles (70 km)*.
Intelligent clamping mechanism!
Featuring an intelligent clamping mechanism, their bike folds effortlessly in just 4 steps. Once folded, it measures a compact 32x20x24 inches, weighing only 47 lbs. (21 kg). This makes it ultra-portable for convenient transportation on buses or trains, and easily storable when you reach your destination.
Powerful Engine!
The Blaupunkt 36V 350W rear wheel hub motor offers impressive speed control with 50 Nm torque. Paired with their efficient LG lithium-ion cells and removable battery housed in the frame, it creates an ideal combination. The motor is maintenance-free, and the integrated BMS in our battery ensures a consistent energy supply.
LCD bike computer!
Their e-bike is equipped with an easy-to-read LCD computer that allows you to choose from 3 levels of motor speed, catering to your specific riding preferences. The LCD computer also provides essential information like battery life, route details, speed, and more. Additionally, you have the option to completely deactivate the motor power.
Technical Details:
Frame: Single die-cast magnesium (60 x 22 x 41″)
Rims: Black magnesium
Tires: 20″ x 2.125
Gears: Shimano 6-speed SIS derailleur (44T/14T-28T)
Brakes (front/rear): Disc brakes, mechanical, 160 mm
Headset: Semi-Integrated
Maximum riding weight: 265 lbs (120 kg)
Motor: Integrated in the rear wheel, DC 36V/350W, 40~45 Nm, brushless, maintenance-free
Battery: 36V/10.5 Ah LG lithium-ion battery with integrated BMS (Battery Management System)
Controller: 36V/15A DC
Sensors: Cadence & speed sensor
Driving modes: 3 levels of pedal and throttle assist. Throttle with walk mode and speed control.
Bicycle computer: LC display with three function keys, backlight. Functions: speed, ODO, TRIP, TIME, PAS LEVEL, battery, LED light, auto power off, error display
Charger: Switching power charger (AC 100 – 240 volts), 42V, 2A
Charging time: About 4-6 hours
Range: Up to 44 miles (70 km)*
Top speed (supported): Max. 20 mph (32 km/h)
